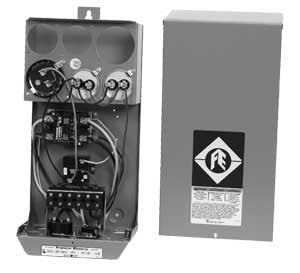

Franklin 7-1/2HP 230V Deluxe Control Box

 IN STOCK!

Features

Franklin 7-1/2HP 230V Deluxe Control Box

Should be used when operating with an external pressure switch or float.

• Type: CONTROL BOX, DELUXE
• HP: 7.5
• Volts: 230
• HZ: 60
• Model No: 2822019310

Technical Data

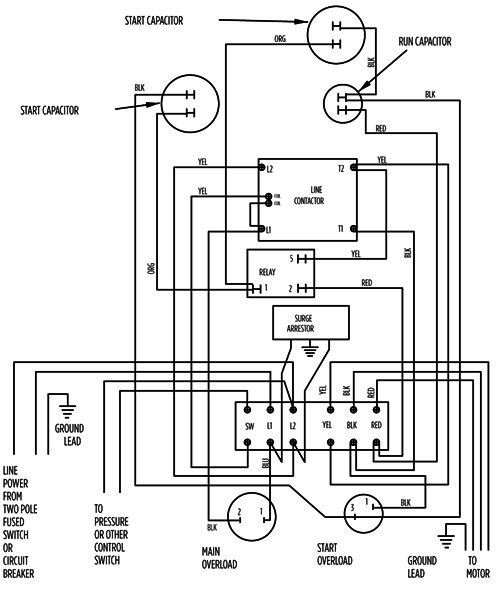

7-1/2HP Deluxe Control Box Wiring Diagram

7-1/2HP Deluxe Control Box - 282 201 9310 - Wiring Diagram

Control Box Parts

Franklin Standard Control Box Parts Breakdown
