1HP Shallow Well Jet Pump

Features and Benefits

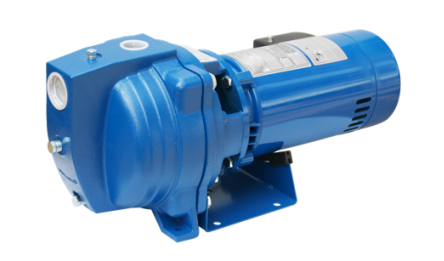

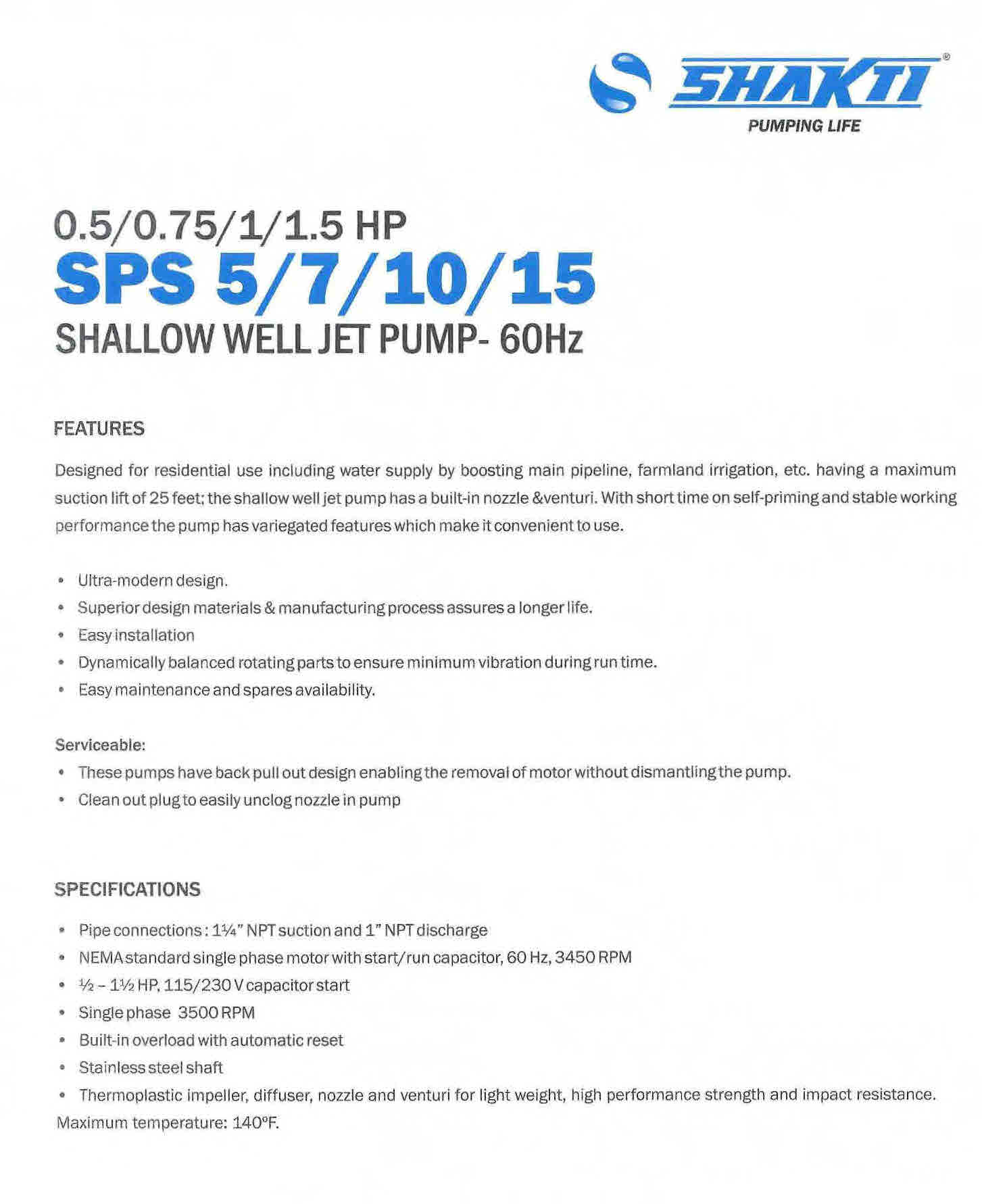

Shakti 1HP Shallow Well Jet Pump

Designed for residential use including water supply by boosting main pipeline, farmland irrigation, etc. having a maximum suction lift of 25 feet; the shallow well jet pump has a built-in nozzle. With short time on self-priming and stable working performance the pump has variegated features which make it convenient to use.

• Ultra-modern design.
• Superior design materials & manufacturing process assures a longer life
• Easy installation
• Dynamically balanced rotating parts to ensure minimum vibration during run time.
• Easy maintenance and spares availability

Specifications

• Pipe connections : 1¼” NPT suction and 1” NPT discharge
• NEMA standard single phase motor with start/run capacitor, 60 Hz, 3450 RPM
• ½ – 1½ HP, 115/230 V capacitor start
• Single phase 3500 RPM
• Built-in overload with automatic reset
• Stainless steel shaft
• Thermoplastic impeller, diffuser, nozzle and venturi for light weight, high performance strength and impact resistance. Maximum temperature: 140°F.
