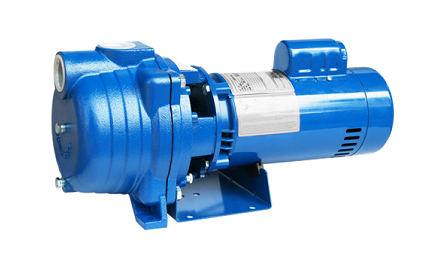

SPI10 1HP Irrigation Pump

Features and Benefits

Shakti 1HP Single Phase - Sprinkler Pump

• Pipe connections: 1½" NPT suction and 1½" NPT discharge o NEMA standard single-phase motor with start/run capacitor, 60 Hz, 3450 RPM
• 1HP, 115/230 V capacitor start • Single phase • 3500 RPM
• Built - in overload with automatic reset • Thermoplastic impeller, diffuser for light weight, high performance strength and impact resistance.
• Maximum temperature: 140 degrees F
• Note: Pump must be refilled before starting/restarting, if the pump is drained or shut off during priming period.
• Total suction lift should not exceed 25 feet of head (inclusive of pipe friction losses and elevation).
• Installation of airtight union (in the suction line close to pump) and a foot valve at liquid source is recommended

Product Specifications

• Model: SPI10
• PH: Single Phase
• HP: 1
• Volts: 115/230V
• RPM: 3500
• Overload: Built in with Auto Reset
• Hz: 60HZ
• Material of Construction: Cast Iron
• Impeller Material: glass filled Noryl
• Motor Enclosure: ODP
• Suction Discharge: 1-1/2" FNPT X 1-1/2" FNPT
• Weight: 57lbs

Shakti Sprinkler Pumps Ship FREE in 24 hrs. of order!
