10GPM (9) 1/2HP 230V Pump Assembly Special

 Features and Benefits

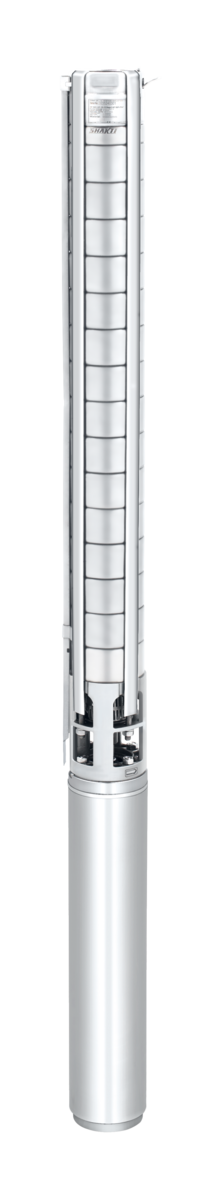

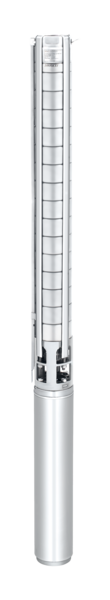

Shakti - 10GPM 1/2HP 230V 3 Wire Full Stainless Steel Pump Assembly

Model:  QF2-9 High Pressure 9 Stage (Duplicates Grundfos 10S05-9)

Same 2 Year Warranty with "FREE SHIPPING" from the Manufactures Warehouse !

All Shakti full stainless steel submersible pumps available at similar pricing!
Call 866-960-9621 for pricing and availability.

Application:
The QF pumps are suitable for the following application :

• Raw water supply
• Irrigation systems
• Groundwater lowering
• Pressure boosting
• Industrial applications

PUMPED LIQUIDS: Clean, thin, non-aggressive liquids without solid particles or fibers

Specifications

• HP: 1/2HP
• GPM: 10
• Stages: 9
• Voltage: 230V
• Motor Type: 3 Wire (4 total wires - 3X hot wires & 1 ground wire)
• Motor RPM: 3450RPM
• Dimensions: Length  23"
• Diameter: Fits Inside Minimum of 4" ID Well Casing
• Weight: 29lbs
• Outlet Size: 1-1/4" FNPT
• Control Box: Not Required for 2 wire model. Required for 3 wire models.
• Check Valve: Included in Pump End
• Maximum Liquid Temp: 40° C / 104°F
• Max. Head: 220'
• Impellers: Stainless Steel

Technical Data

Product Comparison

10GPM Graph

10GPM Graph

10GPM Easy Selection Chart

10GPM Easy Selection Chart

10GPM Material of Construction Data

10GPM Material of Construction Data

Still have questions? Call 866-960-9621
