16GPM (10) 1HP 230V Pump Assembly Special

Features and Benefits

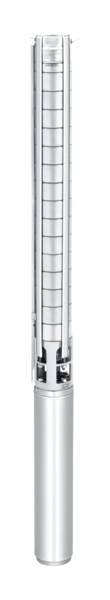

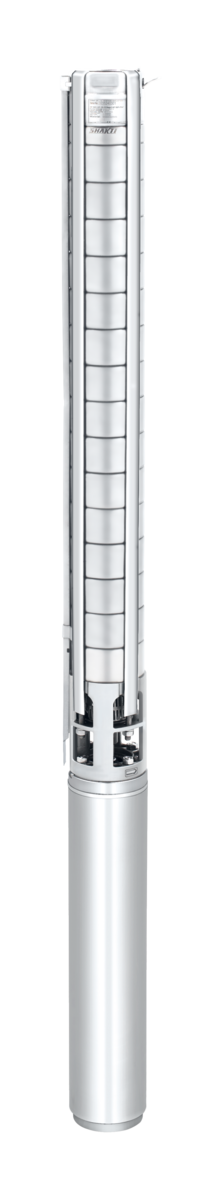

Shakti - 16GPM 1HP 230V Full Stainless Steel Pump Assembly

Model:  QF5-10 (Duplicates Grundfos 16S10-10)

Same 2 Year Warranty with FREE SHIPPING from the Manufactures Warehouse !

All Shakti full stainless steel submersible pumps available at similar pricing!
Call 866-960-9621 for pricing and availability.

Application:
The QF pumps are suitable for the following application :

• Raw water supply
• Irrigation systems
• Groundwater lowering
• Pressure boosting
• Industrial applications

PUMPED LIQUIDS: Clean, thin, non-aggressive liquids without solid particles or fibers

Specifications

• HP: 1HP
• GPM: 16
• Stages: 10
• Impellers: Stainless Steel
• Voltage: 230V
• Motor Type: 3 Wire (4 total wires - 3X hot wires & 1 ground wire)
• Motor RPM: 3450RPM
• Dimensions: Length  26.2"
• Diameter: Fits Inside Minimum of 4" ID Well Casing
• Weight: 32lbs
• Outlet Size: 1-1/4" FNPT
• Control Box: Not Required for 2 wire model. Required for 3 wire models.
• Check Valve: Included in Pump End
• Maximum Liquid Temp: 40° C / 104°F
• Max. Head: 260'

Technical Data

16GPM Graph

16GPM Graph

16GPM Easy Selection Chart

16GPM Easy Selection Chart

16GPM Material of Construction Data

16GPM Material of Construction Data

Still have questions? Call 866-960-9621
