25GPM (11) 2HP 230V Pump Assembly Special

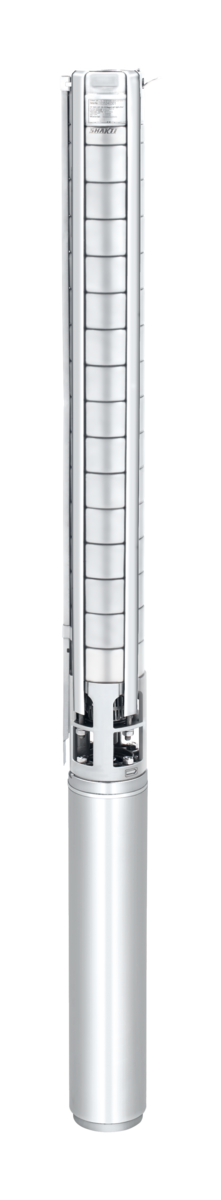

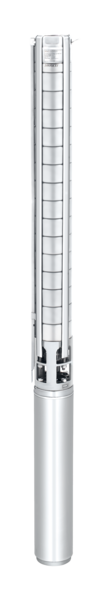

Shakti - 25GPM 2HP 230V Full Stainless Steel Pump Assembly

Model:  QF6-11

Same 2 Year Warranty with FREE SHIPPING from the Manufactures Warehouse !

All Shakti full stainless steel submersible pumps available at similar pricing!
Call 866-960-9621 for pricing and availability.

Application :
The QF pumps are suitable for the following application :

• Raw water supply
• Irrigation systems
• Groundwater lowering
• Pressure boosting
• Industrial applications

PUMPED LIQUIDS:
Clean, thin, non-aggressive liquids without solid particles or fibers

Tech Data:

HP: 2HP

GPM: 25

Stages: 11

Voltage: 230V

Motor Type: 3 Wire (4 total wires - 3X hot wires & 1 ground wire)

Motor RPM: 3450RPM

Dimensions: Length  27.1"

Diameter: Fits Inside Minimum of 4" ID Well Casing

Weight: 34lbs

Outlet Size: 1-1/2" FNPT

Control Box: Required for 3 wire models.

Check Valve: Included in Pump End

Maximum Liquid Temp: 40° C / 104°F

Max. Head: 270'

Impellers: Stainless Steel

Downloads:

25GPM Graph

25GPM Easy Selection Chart

25GPM Material of Construction Data

Still have questions? Call 866-960-9621
