25GPM (7) 1HP 230V Pump Assembly Special

Features and Benefits

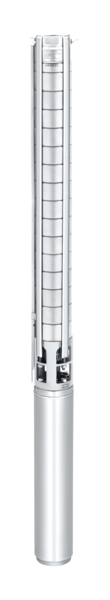

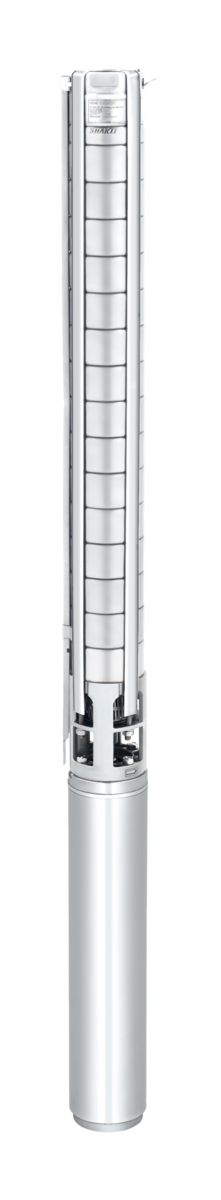

Shakti - 25GPM 1HP 230V Full Stainless Steel Pump Assembly

Model:  QF6-7 (Duplicates Grundfos 25S10-7)

Same 2 Year Warranty with FREE SHIPPING from the Manufactures Warehouse !

All Shakti full stainless steel submersible pumps available at similar pricing!
Call 866-960-9621 for pricing and availability.

Application:
The QF pumps are suitable for the following application :

• Raw water supply
• Irrigation systems
• Groundwater lowering
• Pressure boosting
• Industrial applications

PUMPED LIQUIDS: Clean, thin, non-aggressive liquids without solid particles or fibers

Specifications

• HP: 1HP
• GPM: 25
• Stages: 7
• Voltage: 230V
• Motor Type: 3 Wire (4 total wires - 3X hot wires & 1 ground wire)
• Motor RPM: 3450RPM
• Dimensions: Length  23.7"
• Diameter: Fits Inside Minimum of 4" ID Well Casing
• Weight: 29lbs
• Outlet Size: 1-1/2" FNPT
• Control Box: Not Required for 2 wire model. Required for 3 wire models.
• Check Valve: Included in Pump End
• Maximum Liquid Temp: 40° C / 104°F
• Max. Head: 180'
• Impellers: Stainless Steel

Technical Data

25GPM Graph

25GPM Graph

25GPM Easy Selection Chart

25GPM Easy Selection Chart

25GPM Material of Construction Data

25GPM Material of Construction Data

Still have questions? Call 866-960-9621
