"Your Best Choice When Pump Quality Matters"

Features and Benefits

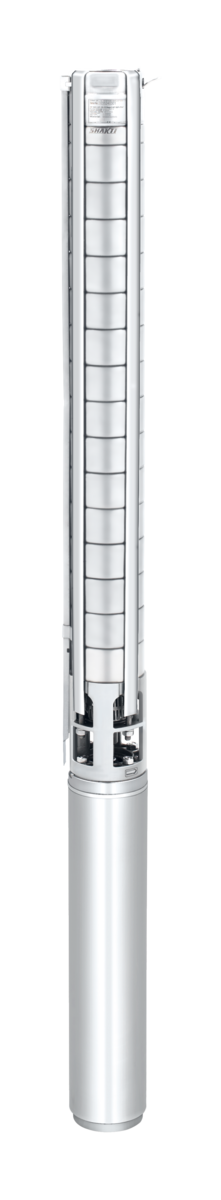

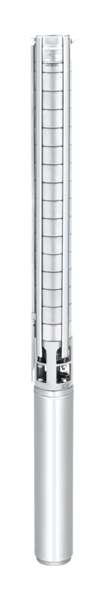

Shakti - 40GPM 2HP 230V Full Stainless Steel Pump Assembly

Model:  QF12-7 (Duplicates Discontinued Grundfos 40S20-7)

Same 2 Year Warranty with FREE SHIPPING from the Manufactures Warehouse !

All Shakti full stainless steel submersible pumps available at similar pricing!
Call 866-960-9621 for pricing and availability.

Application:
The QF pumps are suitable for the following application :

• Raw water supply
• Irrigation systems
• Groundwater lowering
• Pressure boosting
• Industrial applications

PUMPED LIQUIDS: Clean, thin, non-aggressive liquids without solid particles or fibers

Specifications

• HP: 2HP
• GPM: 40
• Stages: 7
• Voltage: 230V
• Motor Type: 3 Wire (4 total wires - 3X hot wires & 1 ground wire)
• Motor RPM: 3450RPM
• Dimensions: Length  34.5"
• Diameter: Fits Inside Minimum of 4" ID Well Casing
• Weight: 41lbs
• Outlet Size: 2" FNPT
• Control Box: Required for 3 wire models.
• Check Valve: Included in Pump End
• Maximum Liquid Temp: 40° C / 104°F
• Max. Head: 160'
• Impellers: Stainless Steel

Technical Data

40GPM Graph

40GPM Graph

40GPM Easy Selection Chart

40GPM Easy Selection Chart

40GPM Material of Construction Data

40GPM Material of Construction Data

Still have questions? Call 866-960-9621.
