5GPM (9) 1/2HP 230V Pump Assembly Special

Features and Benefits

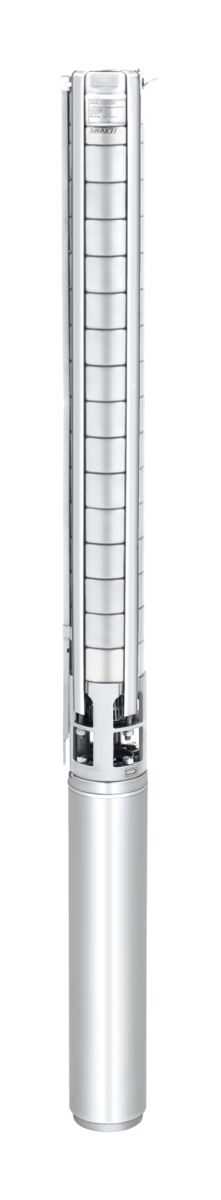

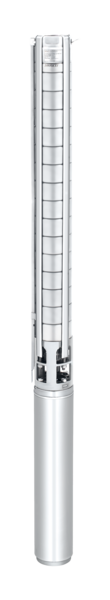

Shakti - 5GPM 1/2HP 230V 3 Wire Full Stainless Steel Pump Assembly

Model:  QF1-9 High Pressure 9 Stage (Duplicates Grundfos 5S05-9)

Same 2 Year Warranty with "FREE SHIPPING"  from the Manufactures Warehouse!

All Shakti full stainless steel submersible pumps available at similar pricing!
Call 866-960-9621 for pricing and availability.

Application

The QF pumps are suitable for the following application :

• Raw water supply
• Irrigation systems
• Groundwater lowering
• Pressure boosting
• Industrial applications

PUMPED LIQUIDS: Clean, thin, non-aggressive liquids without solid particles or fibers

Product Specifications

• HP: 1/2HP
• GPM: 5
• Stages: 9
• Voltage: 230V
• Motor Type: 3 Wire (4 total wires - 3X hot wires & 1 ground wire)
• Motor RPM: 3450RPM
• Dimensions: Length  24.6"
• Diameter: Fits Inside Minimum of 4" ID Well Casing
• Weight: 21.6lbs
• Outlet Size: 1-1/4" FNPT
• Control Box: Not Required for 2 wire model. Required for 3 wire models.
• Check Valve: Included in Pump End
• Maximum Liquid Temp: 40° C / 104°F
• Max. Head: 240'
• Impellers: Stainless Steel

Technical Data

Product Comparison

5GPM Graph

5GPM Graph

5GPM Material of Construction Data

5GPM Material of Construction Data
