"Your Best Choice When Pump Quality Matters"

Features and Benefits

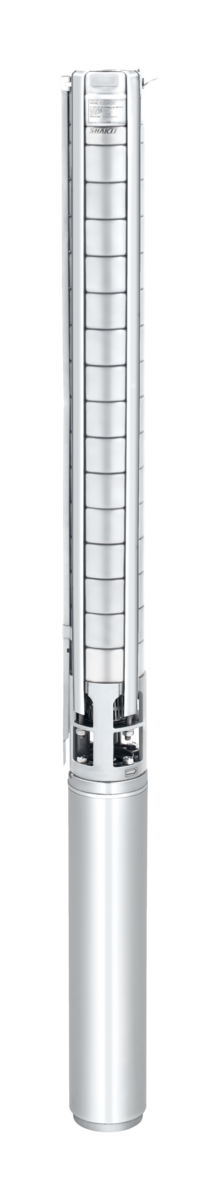

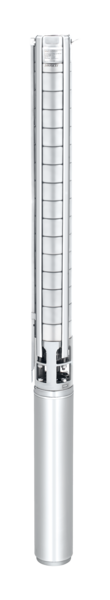

Shakti - 75GPM 5HP 230V Full Stainless Steel Pump Assembly

Model:  QF25-8 (Duplicates Discontinued Grundfos 75S50-8)

Same 2 Year Warranty with FREE SHIPPING from the Manufactures Warehouse !

All Shakti full stainless steel submersible pumps available at similar pricing!
Call 866-960-9621 for pricing and availability.

Application:
The QF pumps are suitable for the following application :

• Raw water supply
• Irrigation systems
• Groundwater lowering
• Pressure boosting
• Industrial applications

PUMPED LIQUIDS: Clean, thin, non-aggressive liquids without solid particles or fibers

Specifications

• HP: 5HP
• GPM: 75
• Stages: 8
• Voltage: 230V
• Motor Type: 3 Wire (4 total wires - 3X hot wires & 1 ground wire)
• Motor RPM: 3450RPM
• Dimensions: Length  40.7"
• Diameter: Fits Inside Minimum of 4" ID Well Casing
• Weight: 64lbs
• Outlet Size: 2" FNPT
• Control Box: Required for 3 wire models.
• Check Valve: Included in Pump End
• Maximum Liquid Temp: 40° C / 104°F
• Max. Head: 235'
• Impellers: Stainless Steel

Technical Data

75GPM Graph

75GPM Graph

60GPM Easy Selection Chart

75GPM Easy Selection Chart

60GPM Material of Construction Data

75GPM Material of Construction Data

Still have questions? Call 866-960-9621.
